Linux 格式化和挂载数据盘 Linux 挂载磁盘

单行、唯一 0     1709      运维   1     0
在本示例中,我们用一个新的 20 GB 数据盘(设备名为 /dev/xvdb)创建一个单分区数据盘并挂载一个 ext3 文件系统。使用的实例是 I/O 优化实例,操作系统为 CentOS 7。

  1. 1.下载linux远程链接工具,如:SecureCRT 7.2;账号密码登录后进行


  2.

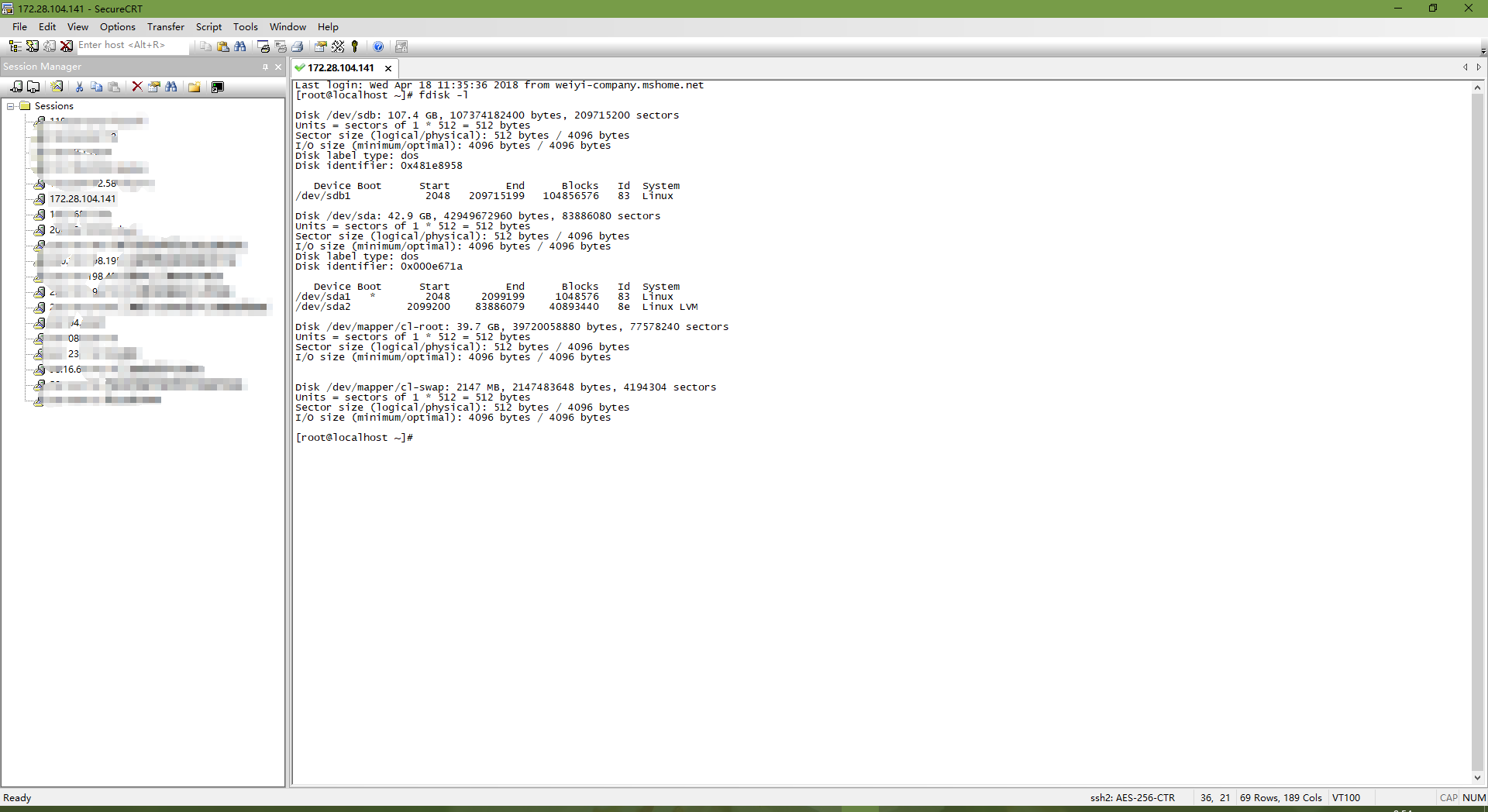

  1. 2.运行 fdisk -l 命令查看实例是否有数据盘。如果执行命令后,没有发现 /dev/vdb,表示您的实例没有数据盘,无需格式化数据盘,请忽略本文后续内容。

    • 如果您的数据盘显示的是 dev/xvd?,表示您使用的是非 I/O 优化实例。

    • 其中 ? 是 a−z 的任一个字母。


  2. 3.创建一个单分区数据盘,依次执行以下命令:

    1. 运行 fdisk /dev/vdb:对数据盘进行分区。

    2. 输入 n 并按回车键:创建一个新分区。

    3. 输入 p 并按回车键:选择主分区。因为创建的是一个单分区数据盘,所以只需要创建主分区。


    4. 说明:

    5. 如果要创建 4 个以上的分区,您应该创建至少一个扩展分区,即选择 e

    6. 输入分区编号并按回车键。因为这里仅创建一个分区,可以输入 1。

    7. 输入第一个可用的扇区编号:按回车键采用默认值 1。

    8. 输入最后一个扇区编号:因为这里仅创建一个分区,所以按回车键采用默认值。


    9. 输入 wq 并按回车键,开始分区。

      1. [root@iXXXXXXX ~]# fdisk /dev/vdb
      2. Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklabel
      3. Building a new DOS disklabel with disk identifier 0x5f46a8a2.
      4. Changes will remain in memory only, until you decide to write them.
      5. After that, of course, the previous content won't be recoverable.
      6. Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)
      7. WARNING: DOS-compatible mode is deprecated. It's strongly recommended to
      8. switch off the mode (command 'c') and change display units to
      9. sectors (command 'u').
      10. Command (m for help): n
      11. Command action
      12. e extended
      13. p primary partition (1-4)
      14. p
      15. Partition number (1-4): 1
      16. First cylinder (1-41610, default 1): 1
      17. Last cylinder, +cylinders or +size{K,M,G} (1-41610, default 41610):
      18. Using default value 41610
      19. Command (m for help): wq
      20. The partition table has been altered!
      21. Calling ioctl() to re-read partition table.
      22. Syncing disks.

  3. 4.查看新的分区:运行命令 fdisk -l。如果出现以下信息,说明已经成功创建了新分区 /dev/vdb1。

    1. [root@iXXXXXXX ~]# fdisk -l
    2. Disk /dev/vda: 42.9 GB, 42949672960 bytes
    3. 255 heads, 63 sectors/track, 5221 cylinders
    4. Units = cylinders of 16065 * 512 = 8225280 bytes
    5. Sector size (logical/physical): 512 bytes / 512 bytes
    6. I/O size (minimum/optimal): 512 bytes / 512 bytes
    7. Disk identifier: 0x00053156
    8. Device Boot Start End Blocks Id System
    9. /dev/vda1 * 1 5222 41942016 83 Linux
    10. Disk /dev/vdb: 21.5 GB, 21474836480 bytes
    11. 16 heads, 63 sectors/track, 41610 cylinders
    12. Units = cylinders of 1008 * 512 = 516096 bytes
    13. Sector size (logical/physical): 512 bytes / 512 bytes
    14. I/O size (minimum/optimal): 512 bytes / 512 bytes
    15. Disk identifier: 0x5f46a8a2
    16. Device Boot Start End Blocks Id System
    17. /dev/vdb1 1 41610 20971408+ 83 Linux

  4. 5.在新分区上创建一个文件系统:运行命令 mkfs.ext3 /dev/vdb1

    • 本示例要创建一个 ext3 文件系统。您也可以根据自己的需要,选择创建其他文件系统,例如,如果需要在 Linux、Windows 和 Mac 系统之间共享文件,您可以使用 mkfs.vfat 创建 VFAT 文件系统。

    • 创建文件系统所需时间取决于数据盘大小。

      1. [root@iXXXXXXX ~]# mkfs.ext3 /dev/vdb1
      2. mke2fs 1.41.12 (17-May-2010)
      3. Filesystem label=
      4. OS type: Linux
      5. Block size=4096 (log=2)
      6. Fragment size=4096 (log=2)
      7. Stride=0 blocks, Stripe width=0 blocks
      8. 1310720 inodes, 5242852 blocks
      9. 262142 blocks (5.00%) reserved for the super user
      10. First data block=0
      11. Maximum filesystem blocks=4294967296
      12. 160 block groups
      13. 32768 blocks per group, 32768 fragments per group
      14. 8192 inodes per group
      15. Superblock backups stored on blocks:
      16. 32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
      17. 4096000
      18. Writing inode tables: done
      19. Creating journal (32768 blocks): done
      20. Writing superblocks and filesystem accounting information: done
      21. This filesystem will be automatically checked every 37 mounts or
      22. 180 days, whichever comes first. Use tune2fs -c or -i to override.

  5. 6.(建议)备份 etc/fstab:运行命令 cp /etc/fstab /etc/fstab.bak


  6. 7.向 /etc/fstab 写入新分区信息:运行命令 echo /dev/vdb1 /mnt ext3 defaults 0 0 >> /etc/fstab

      注意

      如果需要把数据盘单独挂载到某个文件夹,比如单独用来存放网页,请将以上命令 /mnt 替换成所需的挂载点路径。


  7.  Ubuntu 12.04 不支持 barrier,所以对该系统正确的命令是:echo '/dev/vdb1 /mnt ext3 barrier=0 0 0' >> /etc/fstab




  1. 8.查看 /etc/fstab 中的新分区信息:运行命令 cat /etc/fstab

    1. [root@iXXXXXXX ~]# cat /etc/fstab
    2. #
    3. # /etc/fstab
    4. # Created by anaconda on Thu Feb 23 07:28:22 2017
    5. #
    6. # Accessible filesystems, by reference, are maintained under '/dev/disk'
    7. # See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
    8. #
    9. UUID=3d083579-f5d9-4df5-9347-8d27925805d4 / ext4 defaults 1 1
    10. tmpfs /dev/shm tmpfs defaults 0 0
    11. devpts /dev/pts devpts gid=5,mode=620 0 0
    12. sysfs /sys sysfs defaults 0 0
    13. proc /proc proc defaults 0 0
    14. /dev/vdb1 /mnt ext3 defaults 0 0

  2. 9.挂载文件系统:运行命令 mount /dev/vdb1 /mnt


  3. 10.查看目前磁盘空间和使用情况:运行命令 df -h。如果出现新建文件系统的信息,说明挂载成功,可以使用新的文件系统了。

         挂载操作完成后,不需要重启实例即可开始使用新的文件系统。

    1. [root@iXXXXXXX ~]# mount /dev/vdb1 /mnt
    2. [root@iXXXXXXX ~]# df -h
    3. Filesystem Size Used Avail Use% Mounted on
    4. /dev/vda1 40G 6.6G 31G 18% /
    5. tmpfs 499M 0 499M 0% /dev/shm
    6. /dev/vdb1 20G 173M 19G 1% /mnt
